Group Policy Object(GPO) – The Complete Story

A Group Policy Object (GPO) is a set of policies that can be applied by the system administrator across the domain. Multiple GPOs can be applied to different users, computers, and groups. Each GPO contains a specific set of policies that are automatically applied to the Organization Unit (OU) it is linked with.

This article provides concise descriptions of the Windows PowerShell cmdlets that are designed for administering Group Policy in Windows Server and Windows client environments with Remote Server Administration Tools (RSAT) installed. RSAT includes both the Group Policy Management Console (GPMC) and the Group Policy cmdlets.

You must install the Group Policy PowerShell Module before performing any other tasks. This module is part of the Remote Server Administration Tools (RSAT).

Make sure that the Group Policy Management Tools are installed.

Install-Module grouppolicy
Import-Module grouppolicy

To install all RSAT tools using PowerShell with Administrator privileges, run the following cmdlet in an elevated PowerShell instance:

Get-WindowsCapability -Name RSAT* -Online | Add-WindowsCapability -Online
Install-WindowsFeature -Name GPMC

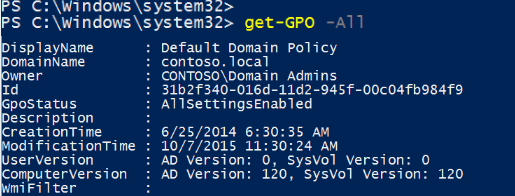

To List all the  Group Policies in your domain :

get-GPO -All

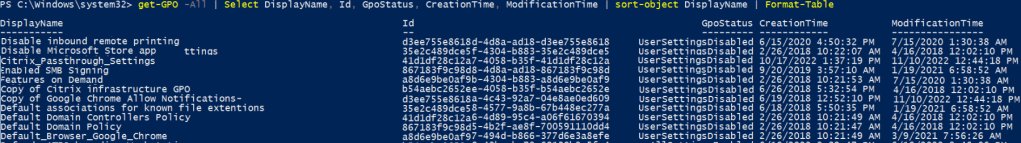

To Format all the  Group Policies in Table:

get-GPO -All | Select DisplayName, Id, GpoStatus, CreationTime, ModificationTime | sort-object DisplayName | Format-Table

To create a GPO report in HTML or XML  for a single GPO, we can either use the GPO Name or the GPO GUI ID.

Using Name

To create a GPO report in HTML for a single GPO using its name, use the following syntax in PowerShell:

Get-GPOReport -Name ‘[NameOfGPO]’ -ReportType ‘HTML’ -Path ‘[PathToSaveFile

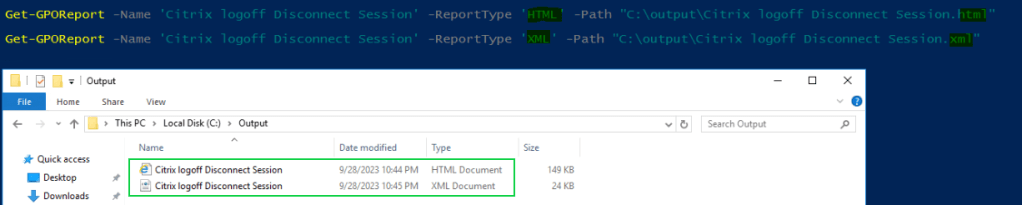

Get-GPOReport -Name 'Google Chrome' -ReportType html -Path "C:\Pilot\GroupPoliciesReport.html"

The same file can also be exported as XML

Get-GPOReport -Name 'Google Chrome' -ReportType Xml -Path "C:\Pilot\GroupPoliciesReport.html"

To display the output file in Powershell , you can use the below cmd

Invoke-Item -Path "C:\Pilot\GroupPoliciesReport.html"

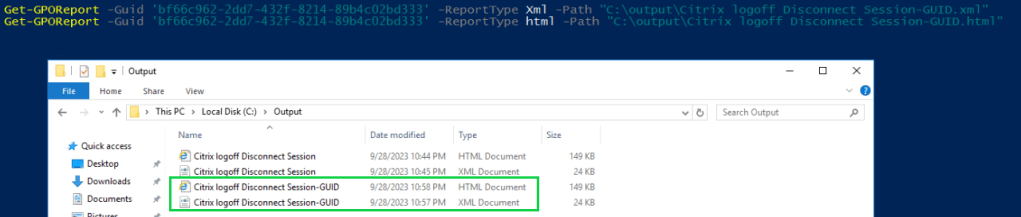

Using GUID

To create a GPO report in HTML for a single GPO using its GUID, use the following syntax in PowerShell:

Get-GPOReport -GUID ‘[Value of GUID]’ -ReportType ‘HTML’ -Path ‘[PathToSaveFile

Get-GPOReport -Guid 'bf66c962-2dd7-432f-8214-89b4c02bd333' -ReportType html -Path "C:\Output\Citrix logoff Disconnect Session-GUID.html"

The same file can also be exported as XML

Get-GPOReport -Guid 'bf66c962-2dd7-432f-8214-89b4c02bd333' -ReportType Xml -Path "C:\Output\Citrix logoff Disconnect Session-GUID.xml"

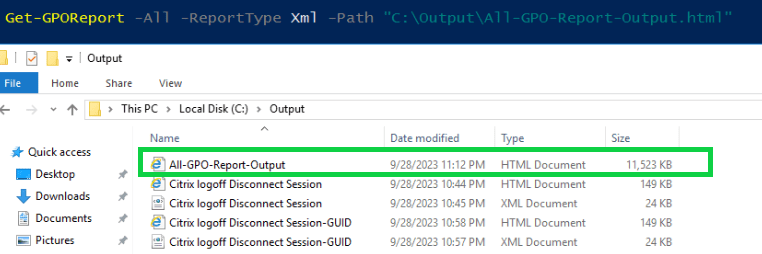

To create a GPO report in HTML or XML  which contains the details for all the GPOs applied within your domain

Get-GPOReport -All -ReportType Xml -Path "C:\Output\All-GPO-Report-Output.html"

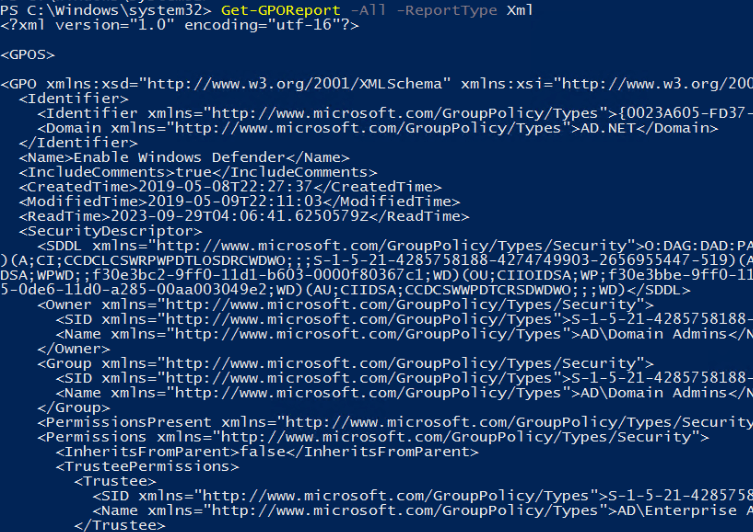

Instead of exporting these reports we can also see it directly in the powershell using below cmds

Get-GPOReport -All -ReportType Xml

The above format might not be so userfriendly to read, so you might even use GPResult.

To generate an HTML report using GPResult in PowerShell, use the following cmdlet:

GPResult /H "C:\Output\GPResult-Output.html"

To generate GPResult in PowerShell window, , use the following cmdlet:

GPResult /R

There are many additional GPO cmds also but, not used very often. It can be found below.

Backup-GPO	Backs up one GPO or all the GPOs in a domain.
Copy-GPO	Copies a GPO.
Get-GPInheritance	Gets Group Policy inheritance information for a specified domain or OU.
Get-GPO	Gets one GPO or all the GPOs in a domain.
Get-GPOReport	Generates a report either in XML or HTML format for a specified GPO or for all GPOs in a domain.
Get-GPPermission	Gets the permission level for one or more security principals on a specified GPO.
Get-GPPrefRegistryValue	Gets one or more Registry preference items under either Computer Configuration or User Configuration in a GPO.
Get-GPRegistryValue	Gets one or more registry-based policy settings under either Computer Configuration or User Configuration in a GPO.
Get-GPResultantSetOfPolicy	Gets and writes the RSoP information for a user, a computer, or both to a file.
Get-GPStarterGPO	Gets one Starter GPO or all Starter GPOs in a domain.
Import-GPO	Imports the Group Policy settings from a backed-up GPO into a specified GPO.
Invoke-GPUpdate	Schedules a remote Group Policy refresh on the specified computer.
New-GPLink	Links a GPO to a site, domain, or OU.
New-GPO	Creates a GPO.
New-GPStarterGPO	Creates a Starter GPO.
Remove-GPLink	Removes a GPO link from a site, domain or OU.
Remove-GPO	Removes a GPO.
Remove-GPPrefRegistryValue	Removes one or more Registry preference items from either Computer Configuration or User Configuration in a GPO.
Remove-GPRegistryValue	Removes one or more registry-based policy settings from either Computer Configuration or User Configuration in a GPO.
Rename-GPO	Assigns a new display name to a GPO.
Restore-GPO	Restores one GPO or all GPOs in a domain from one or more GPO backup files.
Set-GPInheritance	Blocks or unblocks inheritance for a specified domain or organizational unit.
Set-GPLink	Sets the properties of the specified GPO link.
Set-GPPermission	Grants a level of permissions to a security principal for one GPO or all the GPOs in a domain.
Set-GPPrefRegistryValue	Configures a Registry preference item under either Computer Configuration or User Configuration in a GPO.
Set-GPRegistryValue	Configures one or more registry-based policy settings under either Computer Configuration or User Configuration in a GPO.

In summary, Group Policy Objects (GPOs) are a powerful tool for system administrators to manage policies across a domain. By creating and linking GPOs to specific OUs, administrators can ensure that policies are automatically applied to the appropriate users, computers, and groups. With the use of Windows PowerShell cmdlets and Remote Server Administration Tools (RSAT), GPO administration can be streamlined and made more efficient. Overall, GPOs are an essential part of any Windows Server or Windows client environment.
